OLEI · Solid-State LiDAR

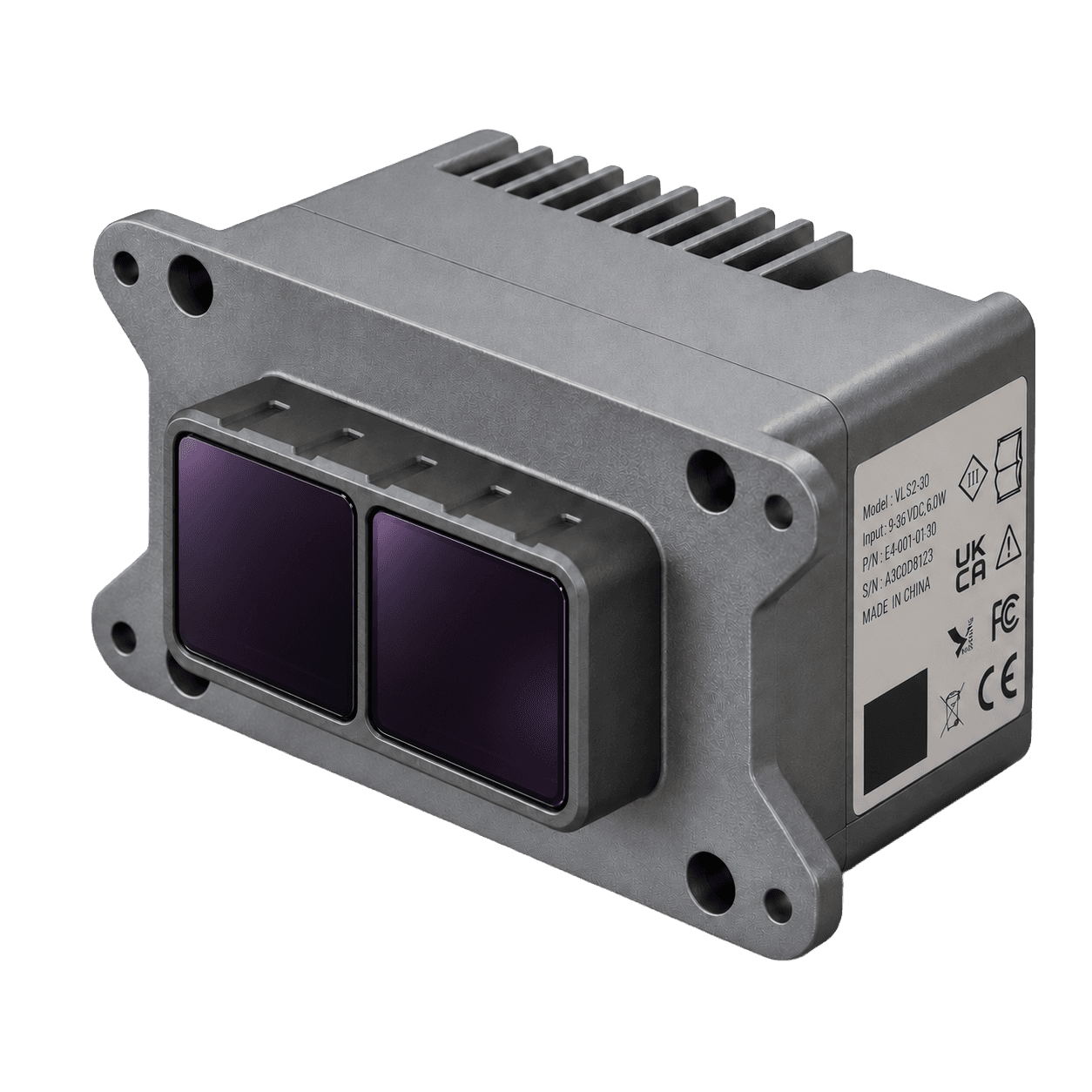

OLEI VSS-50 Gen 2
A taller 80° field in a housing under a third of Gen 1's weight.
- FOV
- 120° × 80°
- Point rate
- 245,760 pts/s
- Range
- 15 / 25 m @ 10%
- Weight
- < 200 g
Overview
The second-generation VSS-50 scans a 2D VCSEL array for a 120° × 80° field, 30° taller than Gen 1, in an 80 × 60 × 55 mm housing under 200 g. Range is stated in sunlight: 15 m @ 10% reflectivity over the full field and 25 m in a 120° × 30° zone, both at 100 klux. It trades Gen 1's point density (245,760 vs 540,000 pts/s) and 30 m @ 10% reach for the taller field, a much smaller footprint and a 5 V to 16 V supply. Gen 1 remains in production.
Best for
- Taller vertical coverage: 80° against Gen 1's 50°
- Weight- and space-constrained robots and drones
- Outdoor perception with range specified in 100 klux sunlight
More Solid-State LiDAR
OLEI VSS-10
Megapixel depth imaging with millimeter accuracy at close range.

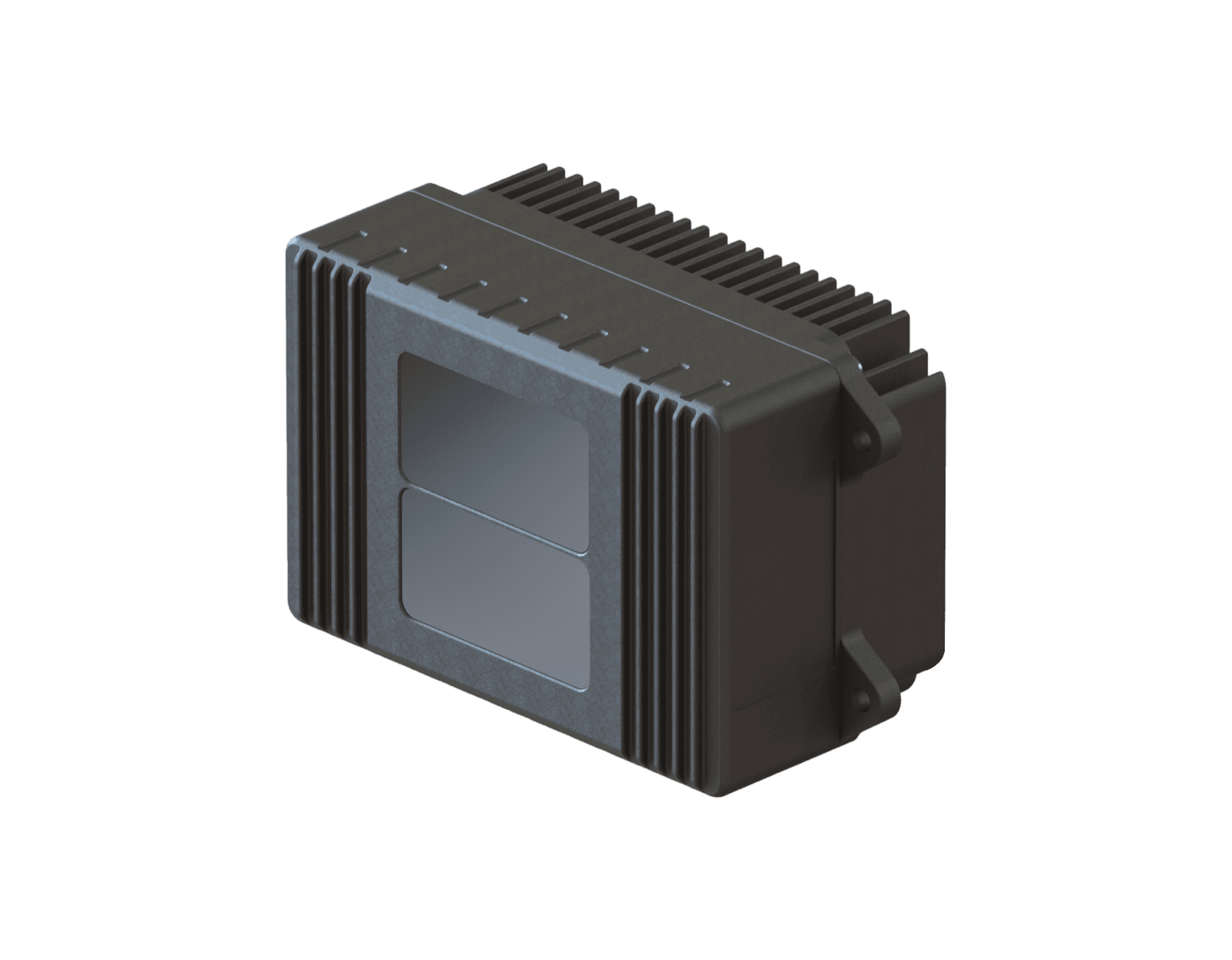

OLEI VSS-50 Gen 1
Dense, long-reach flash dToF perception built for sunlight and dust.

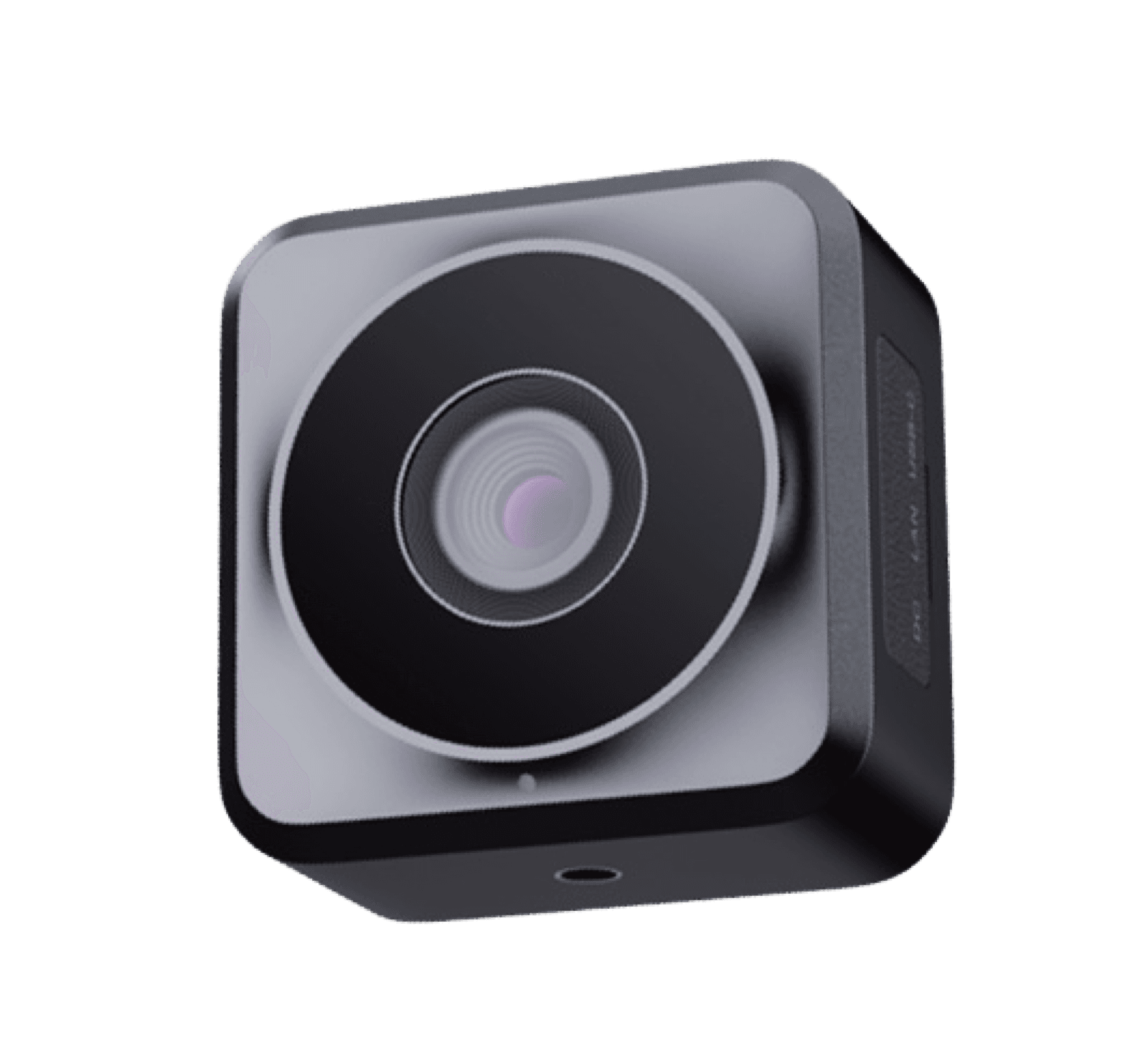

OLEI LR-F240
Compact solid-state obstacle avoidance with a wide field of view.
Ready when you are
Put the VSS-50 Gen 2 on your robot.
Get a quote, request a trial unit, or talk to an engineer about your application.
