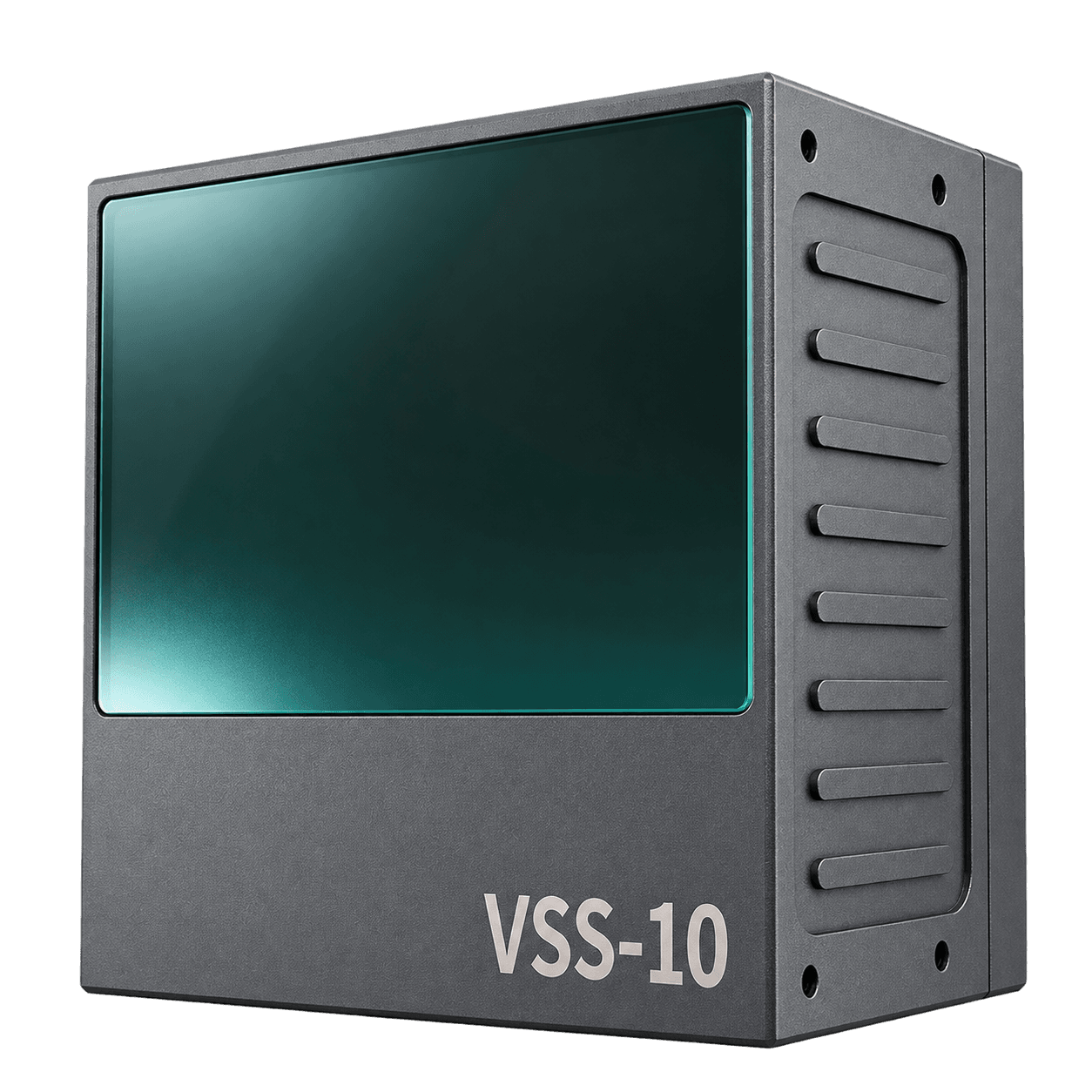

OLEI VSS-10

Megapixel depth imaging with millimeter accuracy at close range.

Imager: 1024 × 1024
FOV: 75° × 75°
Depth range: 0.4–10 m @90%
Accuracy: ±5 mm @0.07–3 m

Contact

Overview

A compact solid-state 3D LiDAR built around a 1024 × 1024 time-of-flight imager, returning grayscale images and a high-precision point cloud over Gigabit Ethernet. An integrated 940 nm band-pass filter and eye-safe illumination keep depth accurate for close-range work — industrial inspection, 3D modeling, and human-machine interaction — from a sealed IP67 body drawing 4 W typical.

Best for

Millimeter-level industrial inspection at close range
Dense 3D modeling and object-geometry capture
Eye-safe human-machine interaction and sensing near people

Full specifications

OLEI VSS-10 specifications
Imager	Up to 1024 × 1024 ToF
Pixel size	3.5 µm × 3.5 µm
Field of view	75° × 75° (H × V)
Depth range	0.4–4 m @20% reflectivity, 0.4–10 m @90% reflectivity
Measurement accuracy	±5 mm @0.07–3 m, ±8 mm @3–10 m
Optical filter	Integrated 940 nm band-pass, filters stray light
Illumination	Eye-safe; complies with eye-safety standards
Output	Grayscale image and high-precision spatial point cloud
Communication	Gigabit Ethernet
Data rate	750 Mbps at full load
Operating voltage	24 V DC ±15%
Power	4 W typical, 5 W peak
Dimensions	59.5 × 59.5 × 39.1 mm
Protection rating	IP67
Operating temperature	−10 to 50 °C
Operating modes	4 modes, 2 resolutions selectable
Mode 0	1024 × 1024 @ 10 Hz, long range
Mode 1	1024 × 1024 @ 10 Hz, short range
Mode 2	512 × 512 @ 40 Hz, short range
Mode 3	512 × 512 @ 40 Hz, long range
