OLEI · 2D LiDAR
OLEI VF Series
Two 360° 2D scanners on one 65 × 65 mm footprint — zone logic or long-range point cloud.
- Field of view
- 360°
- Range
- 10 m (VFD1-10) / 50 m (VFH1-50)
- Point rate
- 14.4K / 100K pts/s
- Rating
- IP65
Overview
A full-circle 2D LiDAR family sharing one 65 × 65 mm footprint, one sub-5 W power budget and one IP65 rating, so either model drops onto the same mount. The VFD1-10 carries the zone logic itself — 16 banks × 3 levels, 4 switching inputs and 4 outputs, ESD hardened and rain capable — for platforms that need a stop signal without a PLC. The VFH1-50 is the survey model: 100,000 points per second at 0.09° out to 50 m, with NTP time sync and a UDP or TCP stream for reflector and natural navigation from a single sensor.
Best for
- Full-circle obstacle avoidance from one chassis mount
- Reflector and natural navigation from a single sensor
- 360° survey and mapping at range
More 2D LiDAR

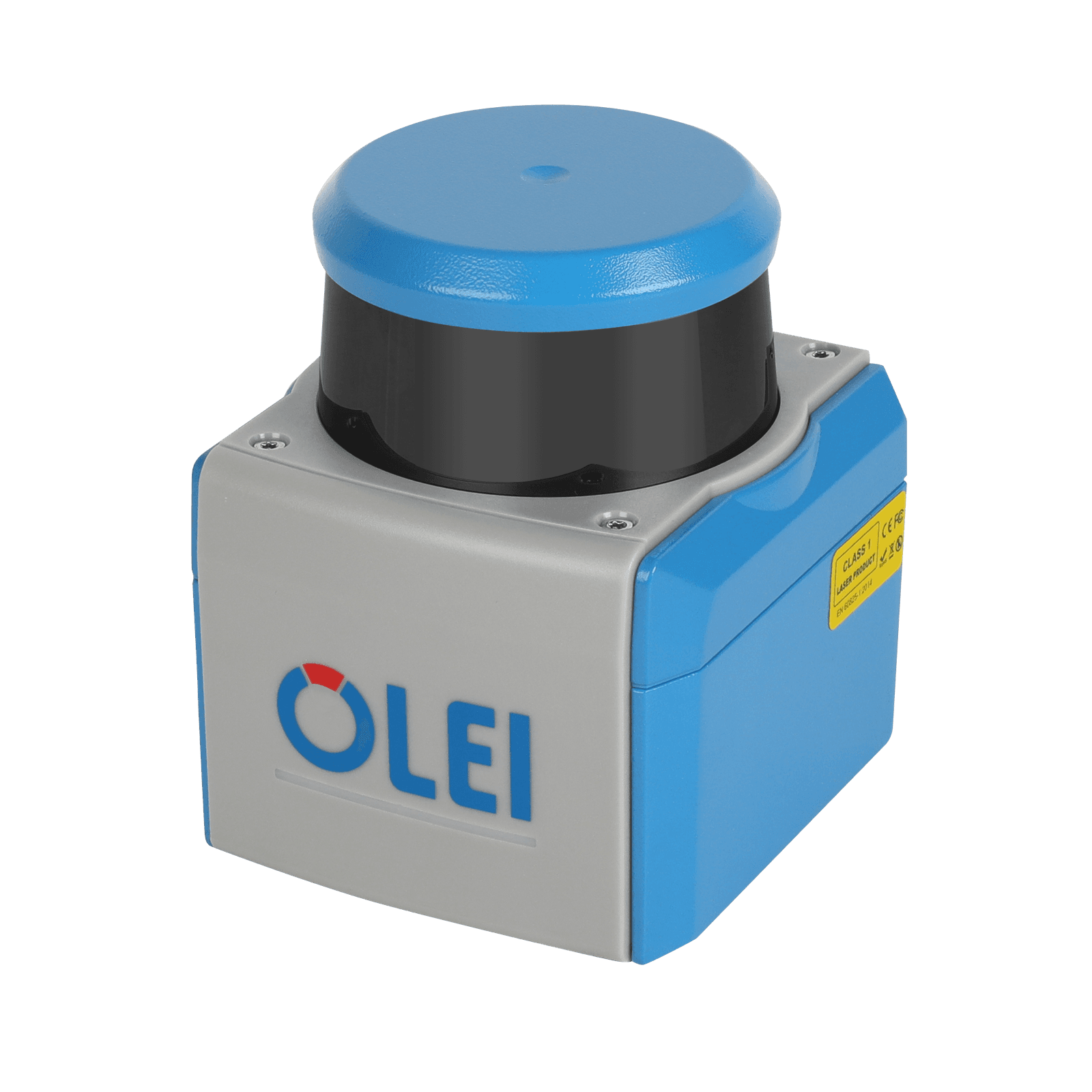

OLEI LR-1F
360° 2D LiDAR — full-circle scanning for navigation and obstacle detection.

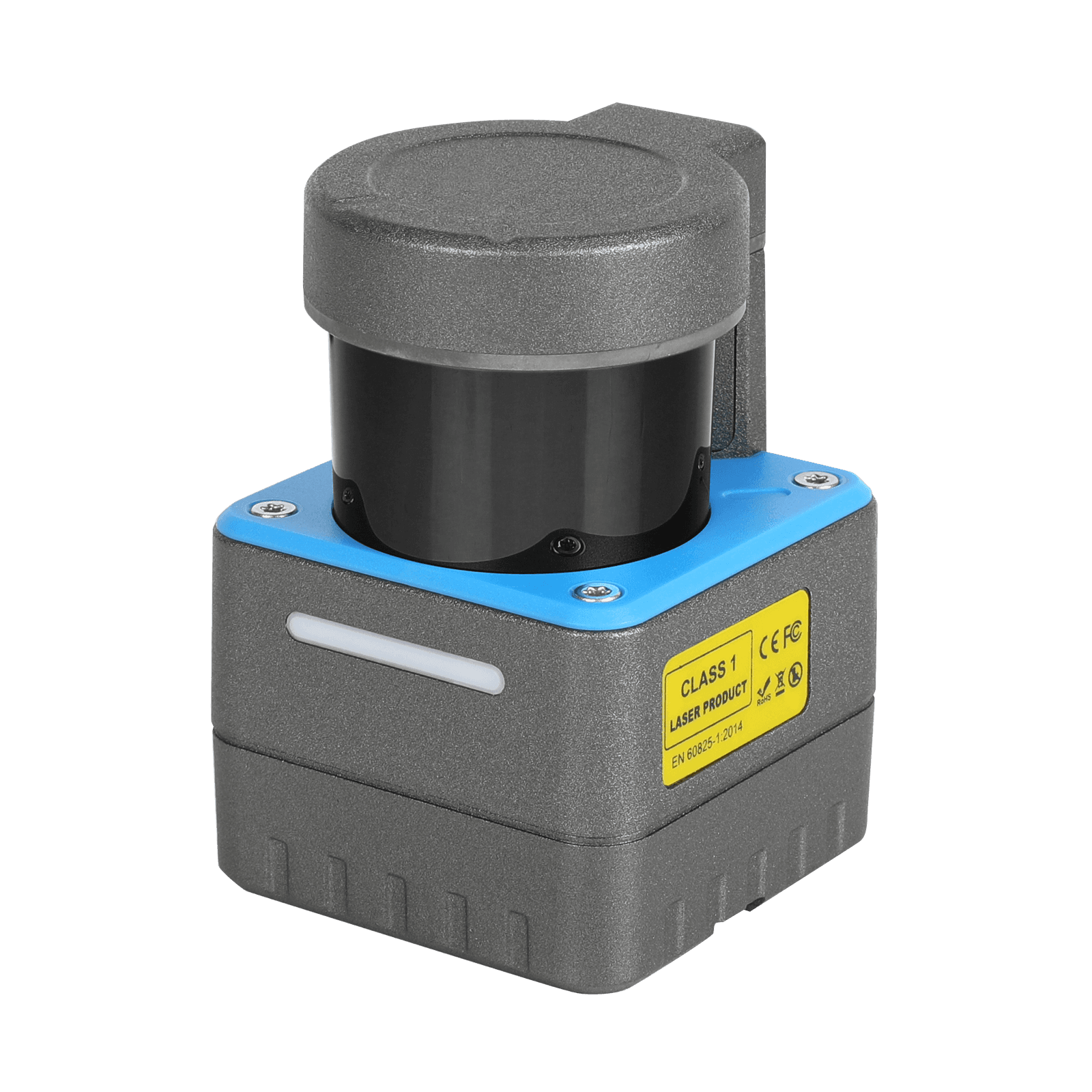

OLEI LR-1BS2 Series
Mini zone LiDAR with built-in alarm outputs — the lowest entry point.

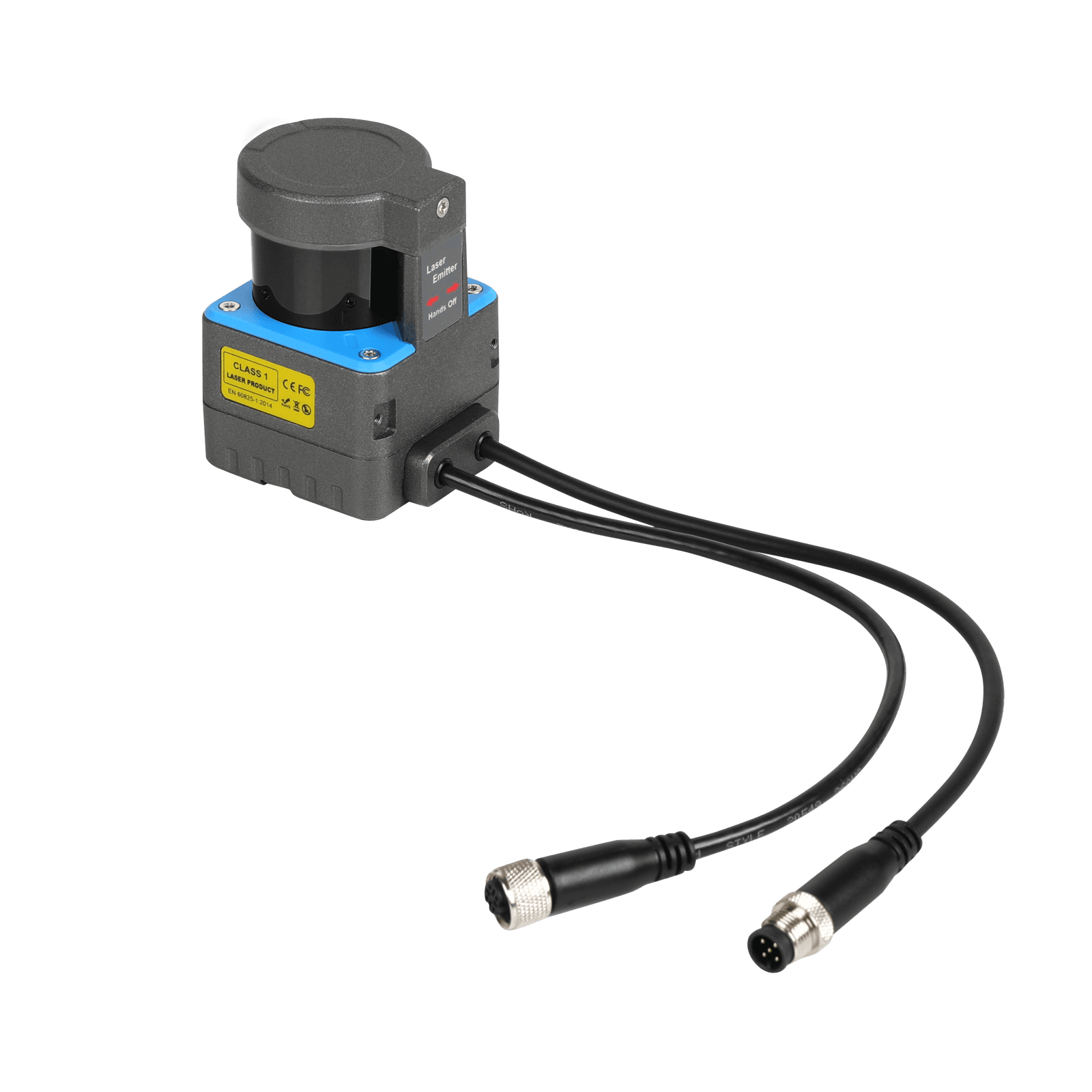

OLEI LR-1BS5 Series
Mini 2D zone LiDAR with built-in alarm outputs — the LR-1BS series.
