OLEI · 2D LiDAR

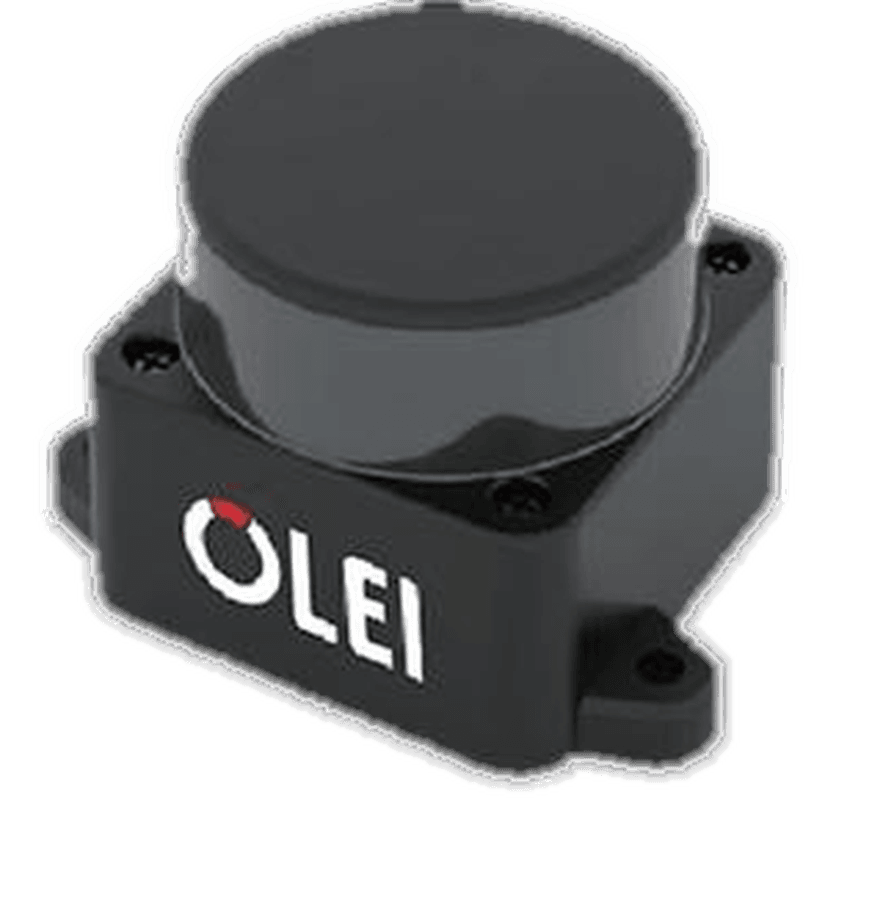

OLEI VF Mini1-10
Full 360° 2D LiDAR built to embed inside compact robots.
- FOV
- 360°
- Range
- 12 m @90% (10 m @10%)
- Angular resolution
- 0.9°
- Point cloud
- 4K pts/s
Contact
Overview
A direct time-of-flight 2D LiDAR built to embed: a full-circle scan at 10 Hz, range out to 12 m @90% (10 m @10%), and a UART stream from a 4-pin connector, in a 52.7 × 45.2 × 34.4 mm body that weighs 40 g.
Best for
- Floor-cleaning robots — compact 360° scan from the top of household and commercial cleaners
- Compact AMRs — full-circle 2D scanning for small mobile platforms and lift robots
- Mapping and SLAM — 360° planar scan for mapping and localization indoors
